HISWISER Micro ATX Motherboard B650PRO BLACK
*Only Motherboard, Not include CPU and DDR*
Product Features:
High end Mogu series motherboards, AMD Ryzen 7000/8000 series processors are preferred for vehicles, and the connectors are all Foxconn/lots/UD connectors, with superior quality; 9-phase DrMos enhances digital power supply and solid-state capacitors, greatly improving the stability and durability of the motherboard, making it easy to play with Ryzen 7000/8000 series processors with AM5 interfaces. Dual channel 2 x DDR5 memory, EXPO one click overclocking, making system processing and program response more effortless. M. 2 PCIE4.0 protocol solid state drives, with 4 SATA 3.0 interfaces available for easy access to massive capacity. 2.5G network card, supporting M.2 WIFI interface, HDMI+DP dual display interface, everything is available! Simultaneously add 3 sets of RGB light pins (3pin 5V and 4pin 12V) to unleash individual needs!
PRODUCT SPECIFICATIONS:
Model: B650PRO-B
CPU: Support AMD AM5 slot, Ryzen 7000/8000 series of processors
Chipset: AMD B650 Chipset
Memory:
Two on board DDR5 DIMM slot
Memory capacity scalable up to 96GB
Supports dual channels DDR5 4800-6000 MHZ
BIOS: AMI 256M EFI BIOS

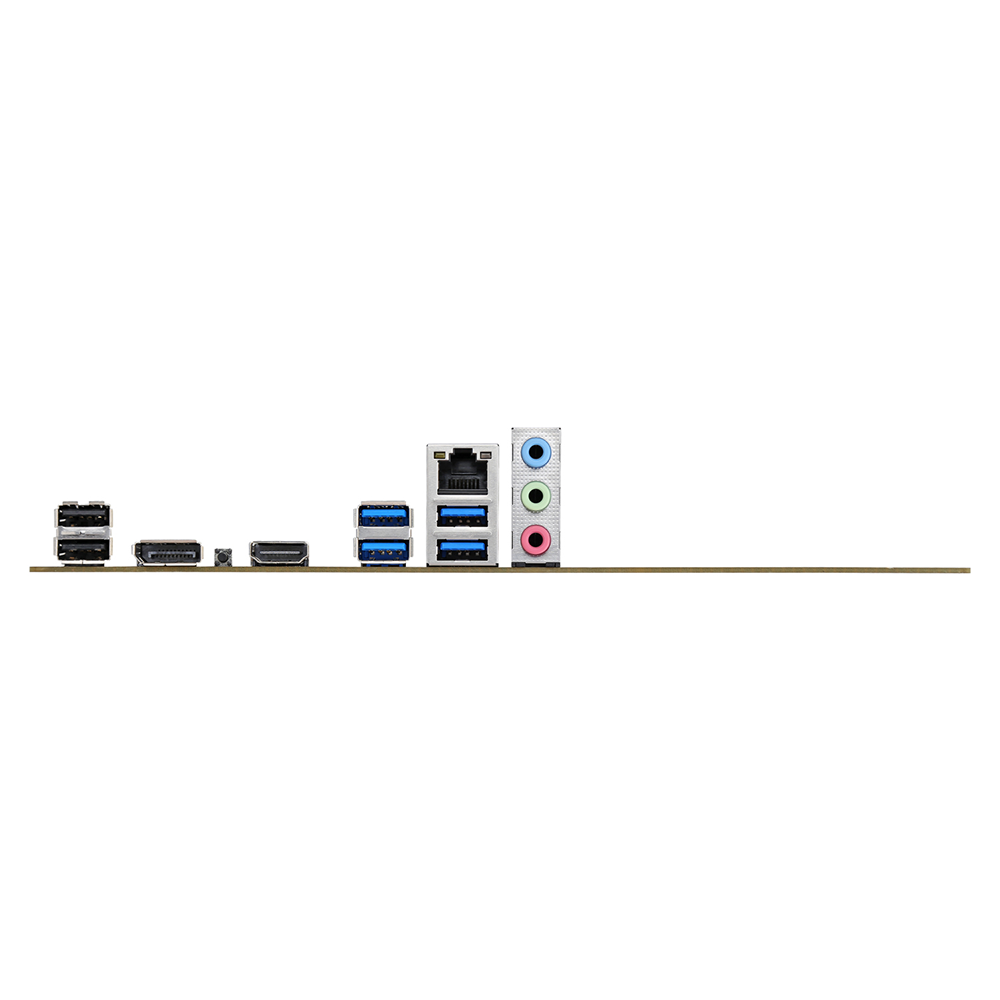

BACKPLANE CONNECTOR:
4 x USB3.0 interface
1 x DP interface
1 x HDMl interface
2 x USB2.0 interface
1 x RJ45 interface
3 x AUDO interface(Line In/Line Out/MIC In)
BUILTIN INTERFACE:
1 x 24Pin ATX Power outlet
1 x 8Pin ATX Power outlet
1 x USB2.0 Pin, can be picked up2*extra external USB2.0 interface
1 x USB3.0 Pin, can be picked up2*extra external USB3.0 interface
1 x Front audio connector
1 x Front panel connector
1X SPEAKER connector
3 x Fan connector
4 x Serial ATA connect port
2 x M.2 SSD slot connector
1 x M.2 WIFI slot connector(Optional)
1 x JCOM interface(Serial communication port)
Integrated sound card:
onboard 5.1 channels HD Audio Codec
provides a front facing audio interface,
provides a front facing stereo micropone connector
Integrated LAN:
onboard 2.5Gbps/1Gbps/100Mbps/10Mbps Adaptive NIC interface
Expansionslot: 1 xPCI Express X16 slot/1xPCI Express X4 slot
Motherboad size: Micro-ATX Architecture(235mm*225mm)
Packaging List: Motherboard x 1, Data cable x 1, I/O Panel x 1, Instruction manual x 1
