Multi Network Overlay Computer Gateway Management Intelligent Control Server Router i7-4900MQ/ i3-4100M/ i5-4300M DDR3 SSD

Multi Network Overlay Computer Gateway Management Intelligent Control Server Router i7-4900MQ/ i3-4100M/ i5-4300M DDR3 SSD

Mixed use in complex environments

Multiple gigabit ports,supporting multiple input and output

Internet cafes/residential areas/rental houses and other places.

with multiple work modes for convenient application

Intelligent flow control

Do not interfere with each other

You can customize web pages, games, office priorities,etc. according to your needs

Segmented permission for users to download at high speeds without speed limits.

effectively utilizing net work resources.

Enterprise office, employee behavior management

Filter websites, control chat tools, guide reasonable internet usage,

establish more flexible and user-friendly management rules through IP grouping and time group settings, and improve work efficiency

Billing for Internet Access

By assigning PPPOE user accounts, it can meet the needs of dormitory, rental housing

and community tenants Certified internet access, limited internet speed in hotel rooms

can accurately limit internet speed Expiration notification, network suspension after expiration.

easy management, authentication for safer internet access

Portal authentication enables easy implementation of smart WiFi

Integrated AC controller, unified management, automatic cloud access for AP, more intelligent network management!

Pay attention to official account authentication, mobile phone authentication, user authentication, one button authentication, fixed password authentication.

Countdown authentication, Weibo authentication, Internet code authentication, trial authentication.

Advertising image pop-up promotion, a powerful helper for businesses to attract traffic and promote operations

Dynamic Domain Name

Dual stack support, dynamic domain name resolution, free choice of service provider, enjoy flexible connectivity!

3322\oray\dnspod\aliyun\huaweicloud\cloudflare

Port diversion achieving one machine and one IP without interfering with each other

Soft routing supports functions such as single line multi dial, multi line access, and multi IP account addition

Multiple IP addresses can be obtained to achieve single machine and single line operation within the intranet through port and ACL rules

Multiple security mechanisms make the network more secure

A comprehensive wireless security system that fundamentally ensures the security of access devices

SD-WAN enables quick remote office setup

SD-WAN remote networking can be used to establish a dedicated network on the public network,

Realize one click interconnection between different branch nodes, enabling enterprises, catering, and chain supermarkets

Store data exchange/resource sharing. Low cost deployment plan for hardware and software

For i7-4900MQ-10P-16-128:

CPU: Intel Core i7-4900MQ 2.8GHz Dual core four thread L3 cache: 8MB

Memory: 16G/DDR3 desktop memory

Storage: 128G/SSD solid-state drive (better performance, faster and more stable)

Network card: Intel i226V * 6 Full 2.5G + i350 * 4 Full Gigabit Ethernet Card

Motherboard: New lightning protection and anti-static network safety industrial control board

Power supply: Taiwan Mingwei Power Supply 100-240V broadband

(stable, silent, durable, low power consumption, long lifespan)

Chassis: 1U rack mounted galvanized steel chassis Size: 440 L x 260 W x 44 H (mm)

For i3-4100M-10P-16-18:

CPU: Intel Core i3-4100M 2.5GHz Dual core four thread L3 cache: 3MB

Memory: 16G/DDR3 desktop memory

Storage: 128G/SSD solid-state drive (better performance, faster and more stable)

Network card: Intel i226V * 6 Full 2.5G + i350 * 4 Full Gigabit Ethernet Card

Motherboard: New lightning protection and anti-static network safety industrial control board

Power supply: Taiwan Mingwei Power Supply 100-240V broadband

(stable, silent, durable, low power consumption, long lifespan)

Chassis: 1U rack mounted galvanized steel chassis Size: 440 L x 260 W x 44 H (mm)

For i3-4100-10P-8-64:

CPU: Intel Core i3-4100M 2.5GHz Dual core four thread L3 cache: 3MB

Memory: 8G/DDR3 desktop memory

Storage: 64G/SSD solid-state drive (better performance, faster and more stable)

Network card: Intel i226V * 6 Full 2.5G + i350 * 4 Full Gigabit Ethernet Card

Motherboard: New lightning protection and anti-static network safety industrial control board

Power supply: Taiwan Mingwei Power Supply 100-240V broadband

(stable, silent, durable, low power consumption, long lifespan)

Chassis: 1U rack mounted galvanized steel chassis Size: 440 L x 260 W x 44 H (mm)

For i7-4900-8P-16-128:

CPU: Intel Core i7-4900MQ 2.8GHz Dual core four thread L3 cache: 8MB

Memory: 16G/DDR3 desktop memory

Storage: 128G/SSD solid-state drive (better performance, faster and more stable)

Network card: Intel i226V * 6 full 2.5G electrical Ethernet ports + 82599ES * 2 10G optical ports

Motherboard: New lightning protection and anti-static network safety industrial control board

Power supply: Taiwan Mingwei Power Supply 100-240V broadband

(stable, silent, durable, low power consumption, long lifespan)

Chassis: 1U rack mounted galvanized steel chassis Size: 440 L x 260 W x 44 H (mm)

For i7-4900-8P-8-64:

CPU: Intel Core i7-4900MQ 2.8GHz Dual core four thread L3 cache: 8MB

Memory: 8G/DDR3 desktop memory

Storage: 64G/SSD solid-state drive (better performance, faster and more stable)

Network card: Intel i226V * 6 full 2.5G electrical Ethernet ports + 82599ES * 2 10G optical ports

Motherboard: New lightning protection and anti-static network safety industrial control board

Power supply: Taiwan Mingwei Power Supply 100-240V broadband

(stable, silent, durable, low power consumption, long lifespan)

Chassis: 1U rack mounted galvanized steel chassis Size: 440 L x 260 W x 44 H (mm)

For i5-4300-8P-16-128:

CPU: Intel Core i5-4300M 2.6GHz Dual core four thread L3 cache: 3MB

Memory: 16G/DDR3 desktop memory

Storage: 128G/SSD solid-state drive (better performance, faster and more stable)

Network card: Intel i226V * 6 full 2.5G electrical Ethernet ports + 82599ES * 2 10G optical ports

Motherboard: New lightning protection and anti-static network safety industrial control board

Power supply: Taiwan Mingwei Power Supply 100-240V broadband

(stable, silent, durable, low power consumption, long lifespan)

Chassis: 1U rack mounted galvanized steel chassis Size: 440 L x 260 W x 44 H (mm)

For i5-4300-8P-8-64:

CPU: Intel Core i5-4300M 2.6GHz Dual core four thread L3 cache: 3MB

Memory: 8G/DDR3 desktop memory

Storage: 64G/SSD solid-state drive (better performance, faster and more stable)

Network card: Intel i226V * 6 full 2.5G electrical Ethernet ports + 82599ES * 2 10G optical ports

Motherboard: New lightning protection and anti-static network safety industrial control board

Power supply: Taiwan Mingwei Power Supply 100-240V broadband

(stable, silent, durable, low power consumption, long lifespan)

Chassis: 1U rack mounted galvanized steel chassis Size: 440 L x 260 W x 44 H (mm)

For i3-4100-8P-16-128:

CPU: Intel Core i3-4100M 2.5GHz Dual core four thread L3 cache: 3MB

Memory: 16G/DDR3 desktop memory

Storage: 128G/SSD solid-state drive (better performance, faster and more stable)

Network card: Intel i226V * 6 full 2.5G electrical Ethernet ports + 82599ES * 2 10G optical ports

Motherboard: New lightning protection and anti-static network safety industrial control board

Power supply: Taiwan Mingwei Power Supply 100-240V broadband

(stable, silent, durable, low power consumption, long lifespan)

Chassis: 1U rack mounted galvanized steel chassis Size: 440 L x 260 W x 44 H (mm)

For i3-4100-8P-8-64:

CPU: Intel Core i3-4100M 2.5GHz Dual core four thread L3 cache: 3MB

Memory: 8G/DDR3 desktop memory

Storage: 64G/SSD solid-state drive (better performance, faster and more stable)

Network card: Intel i226V * 6 full 2.5G electrical Ethernet ports + 82599ES * 2 10G optical ports

Motherboard: New lightning protection and anti-static network safety industrial control board

Power supply: Taiwan Mingwei Power Supply 100-240V broadband

(stable, silent, durable, low power consumption, long lifespan)

Chassis: 1U rack mounted galvanized steel chassis Size: 440 L x 260 W x 44 H (mm)

For i5-4300-6P-16-128:

CPU: Intel Core i5-4300M 2.6GHz Dual core four thread L3 cache: 3MB

Memory: 16G/DDR3 desktop memory

Storage: 128G/SSD solid-state drive (better performance, faster and more stable)

Network card: Intel i226V * 6 Full 2.5G Electrical Ethernet Card

Motherboard: New lightning protection and anti-static network safety industrial control board

Power supply: Taiwan Mingwei Power Supply 100-240V broadband

(stable, silent, durable, low power consumption, long lifespan)

Chassis: 1U rack mounted galvanized steel chassis Size: 440 L x 260 W x 44 H (mm)

For i5-4300-6P-8-64:

CPU: Intel Core i5-4300M 2.6GHz Dual core four thread L3 cache: 3MB

Memory: 8G/DDR3 desktop memory

Storage: 64G/SSD solid-state drive (better performance, faster and more stable)

Network card: Intel i226V * 6 Full 2.5G Electrical Ethernet Card

Motherboard: New lightning protection and anti-static network safety industrial control board

Power supply: Taiwan Mingwei Power Supply 100-240V broadband

(stable, silent, durable, low power consumption, long lifespan)

Chassis: 1U rack mounted galvanized steel chassis Size: 440 L x 260 W x 44 H (mm)

For i3-4100-6P-16-128:

CPU: Intel Core i3-4100M 2.5GHz Dual core four thread L3 cache: 3MB

Memory: 16G/DDR3 desktop memory

Storage: 128G/SSD solid-state drive (better performance, faster and more stable)

Network card: Intel i226V * 6 Full 2.5G Electrical Ethernet Card

Motherboard: New lightning protection and anti-static network safety industrial control board

Power supply: Taiwan Mingwei Power Supply 100-240V broadband

(stable, silent, durable, low power consumption, long lifespan)

Chassis: 1U rack mounted galvanized steel chassis Size: 440 L x 260 W x 44 H (mm)

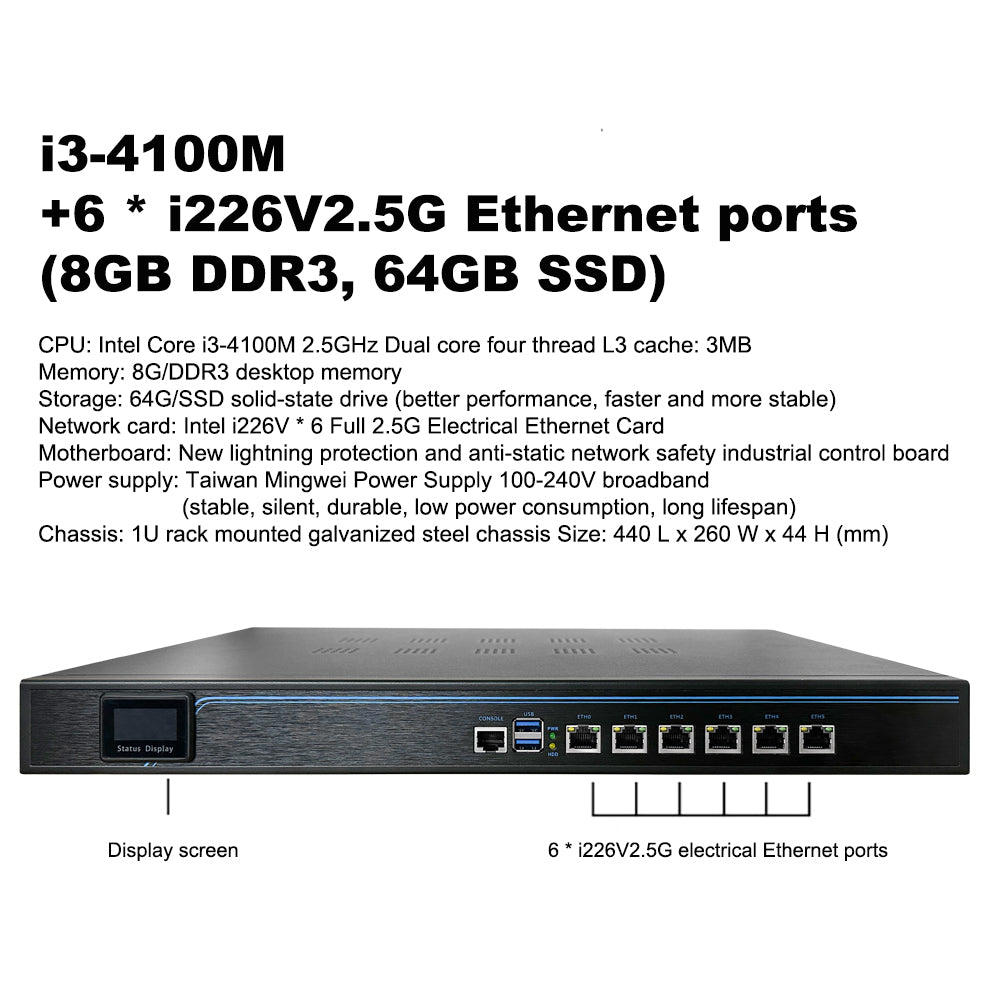

For i3-4100-6P-8-64:

CPU: Intel Core i3-4100M 2.5GHz Dual core four thread L3 cache: 3MB

Memory: 8G/DDR3 desktop memory

Storage: 64G/SSD solid-state drive (better performance, faster and more stable)

Network card: Intel i226V * 6 Full 2.5G Electrical Ethernet Card

Motherboard: New lightning protection and anti-static network safety industrial control board

Power supply: Taiwan Mingwei Power Supply 100-240V broadband

(stable, silent, durable, low power consumption, long lifespan)

Chassis: 1U rack mounted galvanized steel chassis Size: 440 L x 260 W x 44 H (mm)

Reference image:
